How to bind gridview with json in asp.net c#?

By: Mohamed Rasik

10 May 2016

ASP.NET CSharp JQuery

In this article we will discuss How to bind gridview with json in asp.net c#. On the page load bind the gridview using datatable on the same time use jquery to bind gridview.

We will be using Department table

Step 1: Create a table using the following script with data:

USE [ShoppingZone]
GO
/****** Object:  Table [dbo].[Department]    Script Date: 05/11/2016 00:22:44 ******/
SET ANSI_NULLS ON
GO
SET QUOTED_IDENTIFIER ON
GO
CREATE TABLE [dbo].[Department](
      [DepartmentID] [int] IDENTITY(1,1) NOT NULL,
      [Name] [nvarchar](50) NOT NULL,
      [Description] [nvarchar](50) NULL,
 CONSTRAINT [PK_Department] PRIMARY KEY CLUSTERED
(
      [DepartmentID] ASC
)WITH (PAD_INDEX  = OFF, STATISTICS_NORECOMPUTE  = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS  = ON, ALLOW_PAGE_LOCKS  = ON) ON [PRIMARY]
) ON [PRIMARY]
GO
SET IDENTITY_INSERT [dbo].[Department] ON
INSERT [dbo].[Department] ([DepartmentID], [Name], [Description]) VALUES (1, N'Software', N'software developer')
INSERT [dbo].[Department] ([DepartmentID], [Name], [Description]) VALUES (2, N'Q.C Engineer', N'mechanical department')
INSERT [dbo].[Department] ([DepartmentID], [Name], [Description]) VALUES (3, N'Inspectors', N'workers')
INSERT [dbo].[Department] ([DepartmentID], [Name], [Description]) VALUES (4, N'Marketing', N'marketing responisbility')
INSERT [dbo].[Department] ([DepartmentID], [Name], [Description]) VALUES (5, N'Human Resources', N'HR team')
SET IDENTITY_INSERT [dbo].[Department] OFF

Step 2: Create a class and name it DeptDetails for the department table.

Step 3: Copy and paste the following code in the design page Default.aspx.

<%@ Page Language="C#" AutoEventWireup="true" CodeFile="Default.aspx.cs" Inherits="_Default" %>


<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head id="Head1" runat="server">
    <title>Asp.net Bind Data to Datatable using JQuery or JSON</title>
    <script type="text/javascript" src="http://ajax.googleapis.com/ajax/libs/jquery/1.6.2/jquery.min.js"></script>
    <script type="text/javascript">
        $(document).ready(function () {
            $.ajax({
                type: "POST",
                contentType: "application/json; charset=utf-8",
                url: "Default.aspx/BindDatatable",
                data: "{}",
                dataType: "json",
                success: function (data) {
                    for (var i = 0; i < data.d.length; i++) {
                        $("#grid").append("<tr><td>" + data.d[i].DepartmentId + "</td><td>" + data.d[i].Name + "</td><td>" + data.d[i].Description + "</td></tr>");
                    }
                },
                error: function (result) {
                    alert("Error");
                }
            });
        });
    </script>
    <style type="text/css">
        table, th, td {
            border: 1px solid black;
            border-collapse: collapse;
        }
    </style>
</head>
<body>
    <form id="form1" runat="server">
        <asp:GridView ID="grid" runat="server">
            <HeaderStyle BackColor="#DC5807" Font-Bold="true" ForeColor="White" />
        </asp:GridView>
    </form>
</body>
</html>

Step 4: Copy and paste the following code in the Default.aspx.cs.

using System;
using System.Collections.Generic;
using System.Data;
using System.Data.SqlClient;
using System.Web.Services;

public partial class _Default : System.Web.UI.Page
{
    protected void Page_Load(object sender, EventArgs e)
    {
        if (!IsPostBack)
        {
            BindColumnToGridview();
        }
    }
    /// <summary>
    /// This method is used to bind dummy row to gridview to bind data using JQuery
    /// </summary>
    private void BindColumnToGridview()
    {
        DataTable dt = new DataTable();
        dt.Columns.Add("DepartmentId");
        dt.Columns.Add("Name");
        dt.Columns.Add("Description");
        dt.Rows.Add();
        grid.DataSource = dt;
        grid.DataBind();
        grid.Rows[0].Visible = false;
    }

    [WebMethod]
    public static DeptDetails[] BindDatatable()
    {
        DataTable dt = new DataTable();
        List<DeptDetails> details = new List<DeptDetails>();
        using (SqlConnection con = new SqlConnection("Data Source=BIG-PC;Initial Catalog=ShoppingZone;Integrated Security=true"))
        {
            using (SqlCommand cmd = new SqlCommand("select DepartmentId,Name,Description from Department", con))
            {
                con.Open();
                SqlDataAdapter da = new SqlDataAdapter(cmd);
                da.Fill(dt);
                foreach (DataRow dtrow in dt.Rows)
                {
                    DeptDetails dept = new DeptDetails();
                    dept.DepartmentId = dtrow["DepartmentId"].ToString();
                    dept.Name = dtrow["Name"].ToString();
                    dept.Description = dtrow["Description"].ToString();
                    details.Add(dept);
                }
            }
        }
        return details.ToArray();
    }
    public class DeptDetails
    {
        public string DepartmentId { get; set; }
        public string Name { get; set; }
        public string Description { get; set; }
    }
}

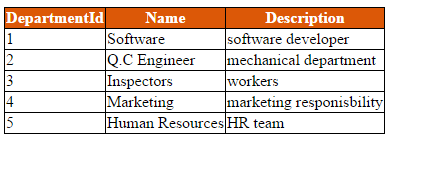

Output:
